S1 Sub-boiling Acid Purifier
S1 Sub-boiling Acid Purifier adopts classic sub-boiling distillation approach and works to achieve a dynamically delicate balance between automatic control of heat convection and acid vaporization. The instrument control is designed to enable intelligent operating and handling of any task, making even an unmanned acid purification session possible in the fume hood. The device is constructed with absolutely zero quartz or metal parts, entirely eliminating the occurrence of corrosion and outside contamination from happening.
-
Surrouding heating mode ensures heating efficiency and uniformity
-

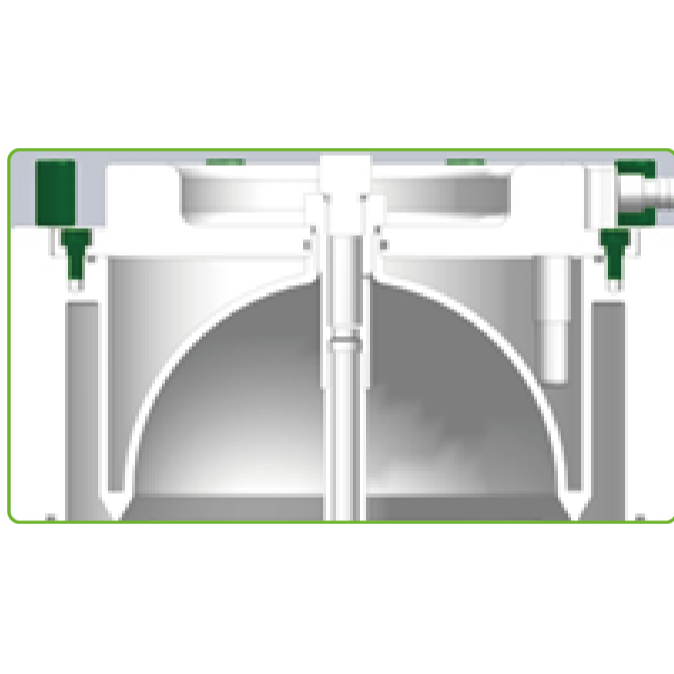

Optimized geometry of cooling chamber
-
Six safety insurance to protect operation safety
-
Download
-
Get a quote online


Product features
-
01
3D surrounding heating to improve energy utilization
-
02
Optimized geometry of cooling chamber provides a efficient condensation and achieves a higer yield.
-
03
Raw acid is injected from the bottom via specially designed delivery channel to reduce length of passage and eliminate contamination
-
04
Enhanced safety insurance to protect the instrument operation
Specifications

Name | Specifications |
---|---|
Dimension | 361mm×360mm×400mm |
Heating power | 300W |
Max. heating temperaure | 200℃ |
Heating mode | 电热板加热 |
Cooling mode | 冷水循环冷却 |
Feed capacity | 0.5L—2L |
Production rate (24h) | HNO3 1.8L;HCL 1.6 L;HF 1.5 L; H2O 2.0 L |
Receiving vessel | 500mL |
Distillation rat | 1.25mL/min |
