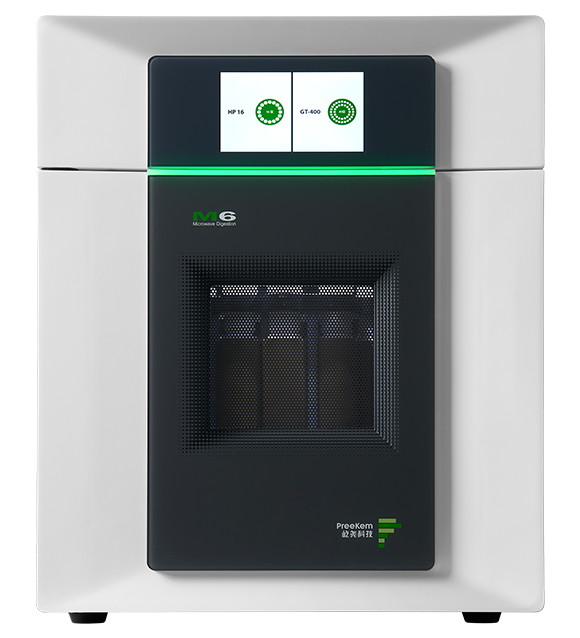

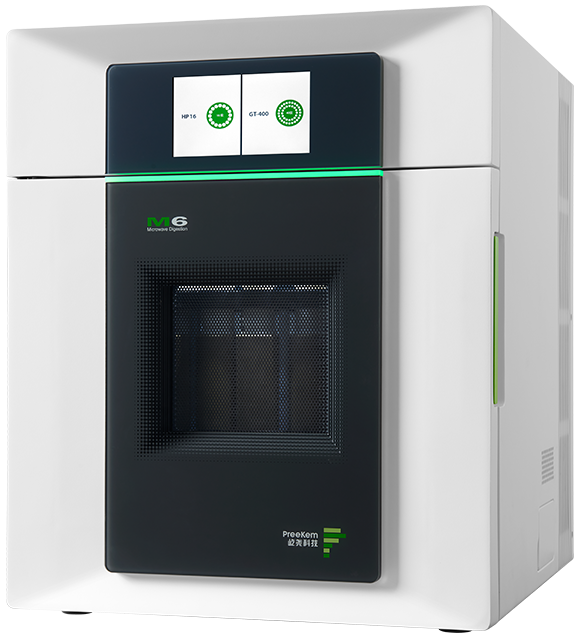

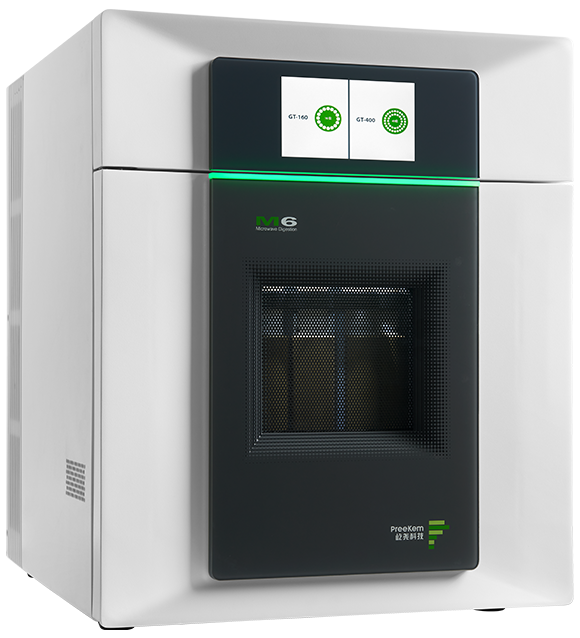

M6 Microwave Digestion System

M6 microwave digestion system delivers the sample preparation solution according to your need. With high-quality material and innovative solution as rotor and vessel position recognition, M6 helps to achieve reliable trace element analysis result due to precise temperature control ability Status light visualizes the program running status and the LCD screen displays the information as each vessel's temperature via histogram. The flexible and extendable rotor allows different application such as acid digestion, solvent extraction and other sample preparation process of various sample types such as soil, food, drugs, materials etc.,.

Compatible for 3 different rotors
Auto rotor recognition and ful vessel temperature monitor
160 sample per day

Download
Get a quote online

Product features

01

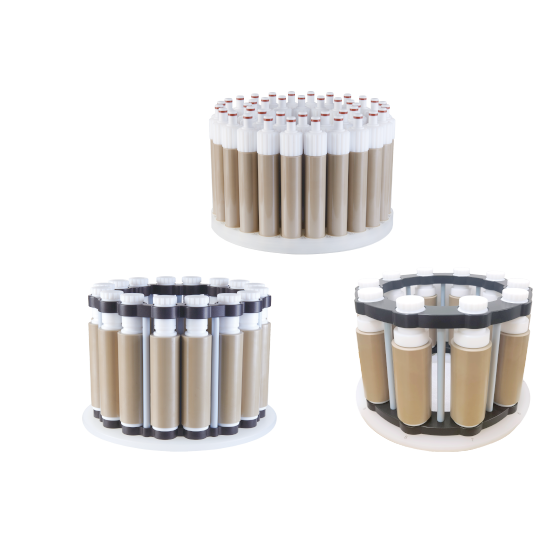

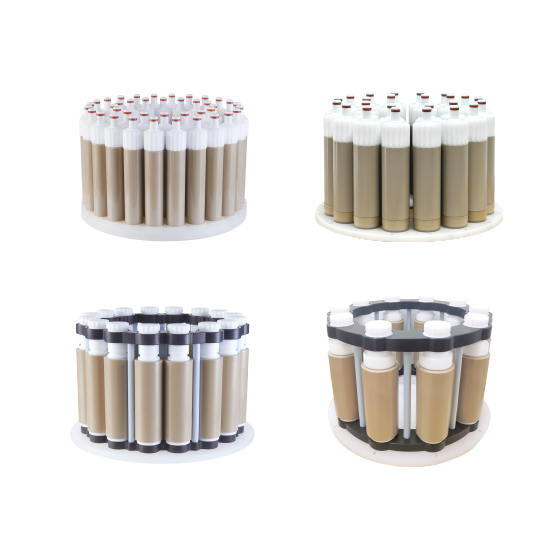

High throughput rotor and ultra-high pressure rotor are easy for switching over.
02

Tool free vessel assembly. Less than 8 min to finish 40 vessels' assembly.
03

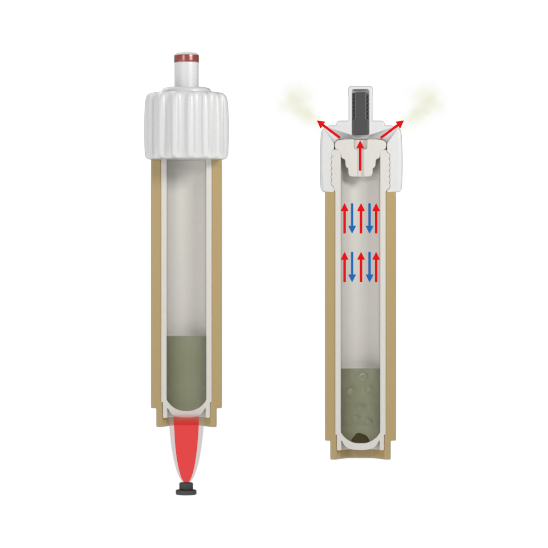

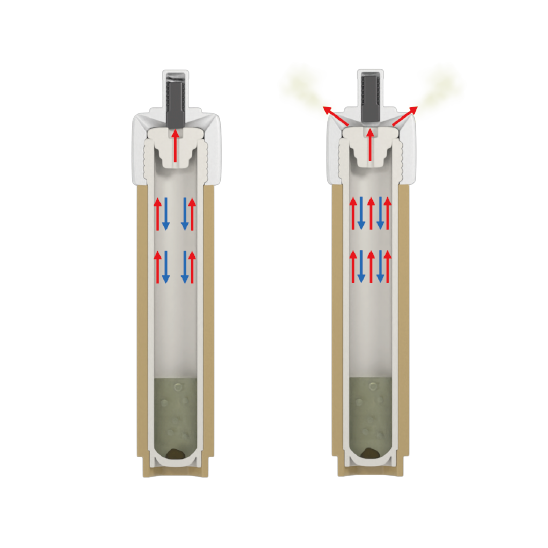

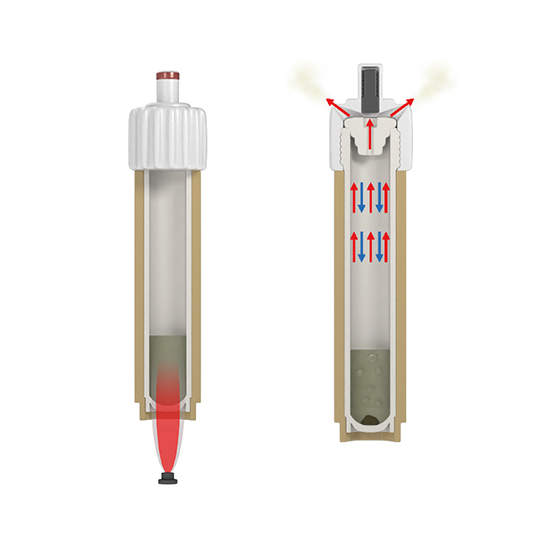

Coupled with full-vessel temperature control and pressure control as dual safety monitor system.
04

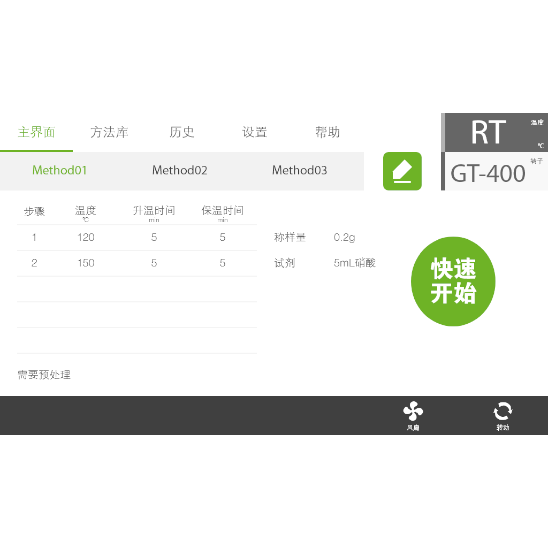

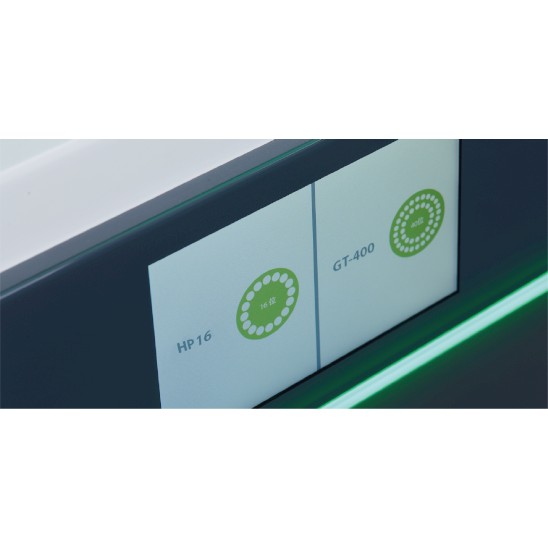

Auto rotor and vessel position recognition technique enhances temperature control ability. Each vessel’s temperature is displayed in real time via histogram.
05

Twin-air ultra-fast cooling system combines optimized air duct design provides rapid cooling function. The build-in intelligent control system enables auto air volume adjustment.
06

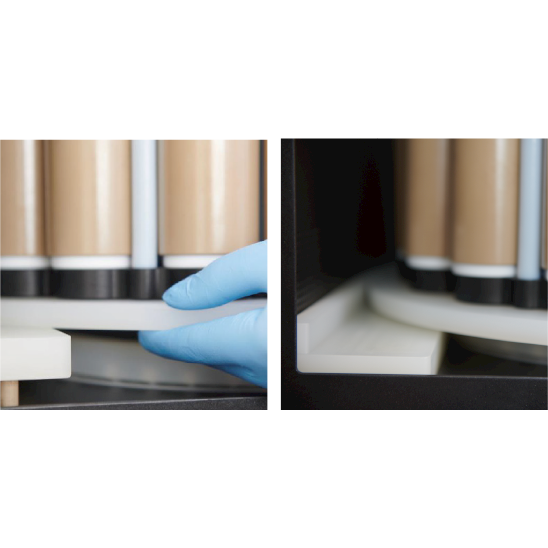

Auto-lifting design for rotors make the rotor placement and remove simpler and safer

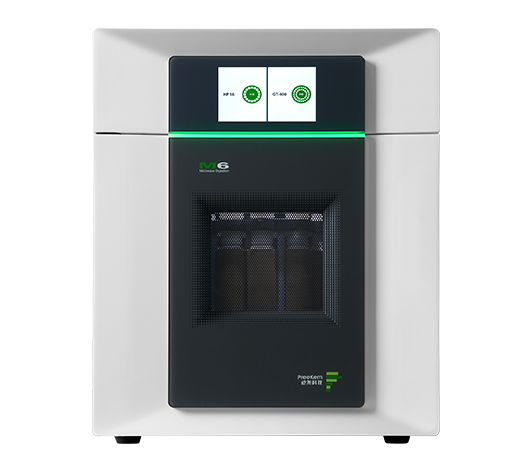

Specifications

Name	Specifications
Dimension（mm）	546( width）×590（depth）×665（height）
Microwave oven	industrial grade resonance oven
AC power	220-240V/50Hz，16A
Frequency	2450MHz
Total power	3200W
Microwave emission mode	Unpulsed, ±1W
Microwave control mode	PID control
