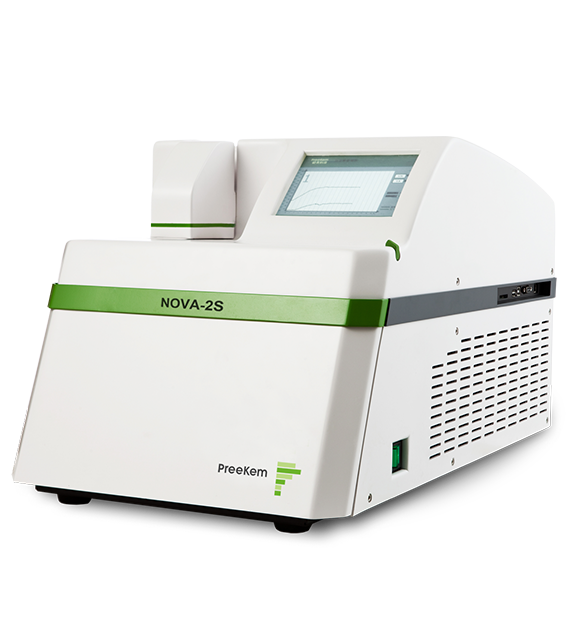

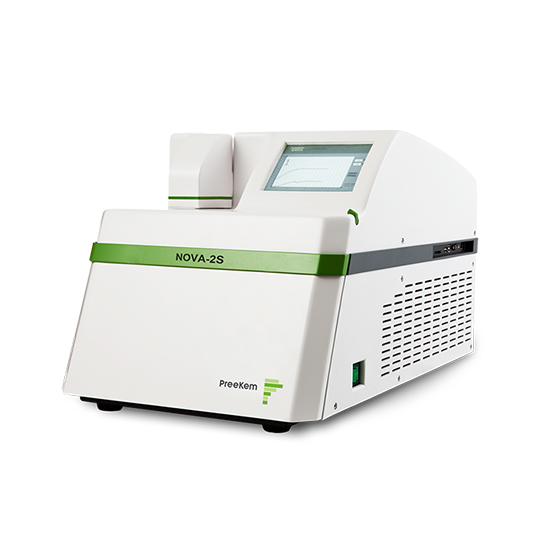

NOVA 2S Microwave Synthesizer
NOVA 2S microwave synthesizer adopts single-mode energy focus cavity and microwave feedback technology which greatly enhances the microwave density and uniformity. The vector modeling designed cavity can focus the microwave energy to the sample zone which helps to improve the reliability and repeatability of the reaction. The intelligent graphical interface design, diversified experimental choices, real-time data recording and sufficient data storage and exportation system provides you everything that you need from the reaction
-
Multi-functional platfrom
-
Real-time temperature and pressure data montioring
-
Intelligent software system
-
Download
-
Get a quote online


Product features
-
01

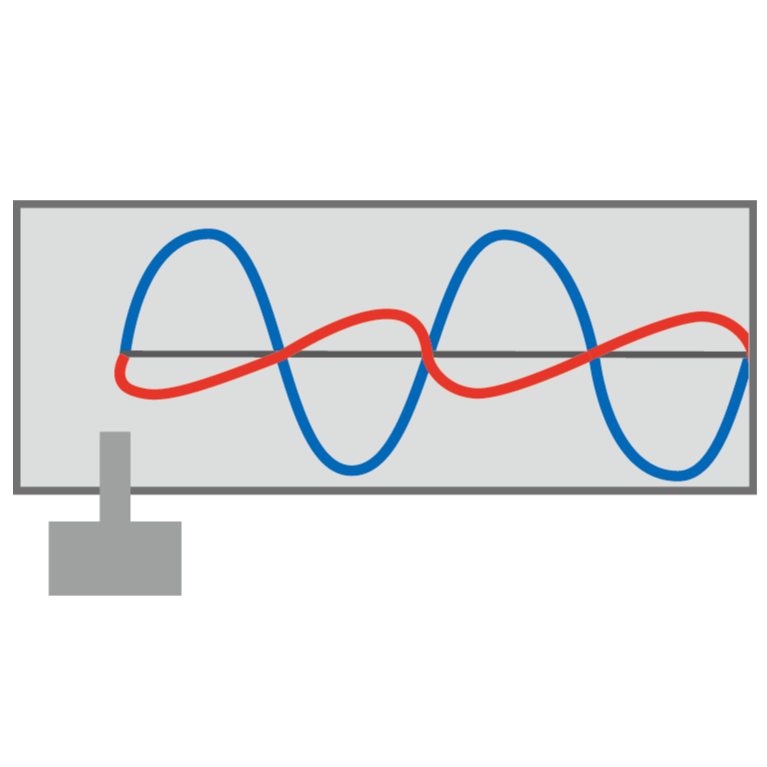

Single-mode energy focus cavity enhances microwave density and uniformity.
-
02

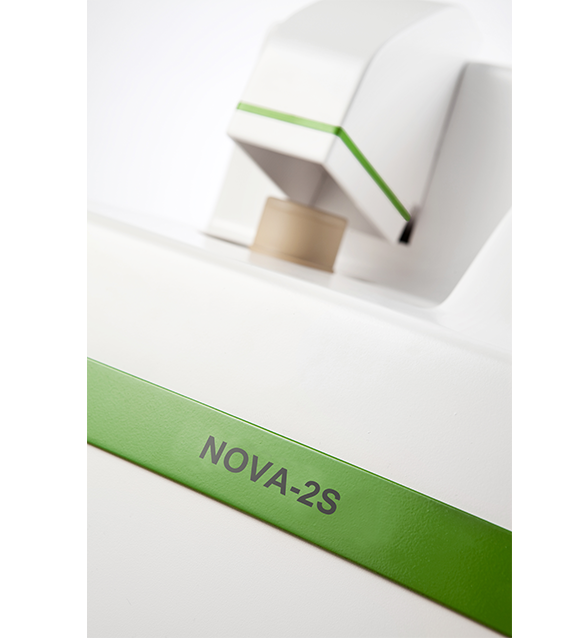

Safety cover locks the sample inside cavity automatically during the operation. It will maintain the locking status until the temperature and pressure falls into safe range.
-
03
Real-time temperature and pressure monitor through total reaction process.
-
04

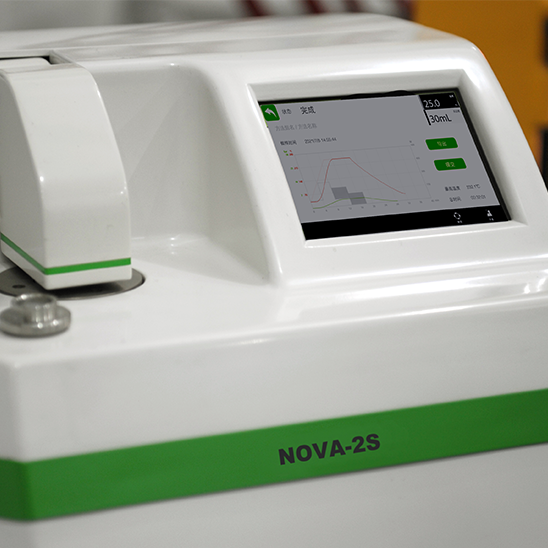

Intelligent software system integrated colorful LCD touch screen displays operation method, parameter, reaction curve at a glance.

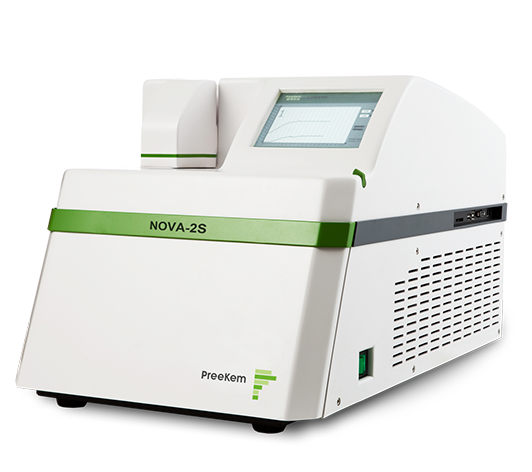

Specifications

Name | Specifications |
---|---|
Dimension | 370mm (Height) ×370mm (Width) ×620mm (Depth) |
Microwave power | 500W |
IR measurement range | -20-350℃ |
Optical fiber measurement range | 0-250℃ |
Pressure measurement range | 0-4MPa |
Magnetic stir | 1500r/min |
Mechanical stirring | 0-2000r/min,adjustable |
Heating rate | 50-120℃/min |
Cooling rate | 40℃/min |
