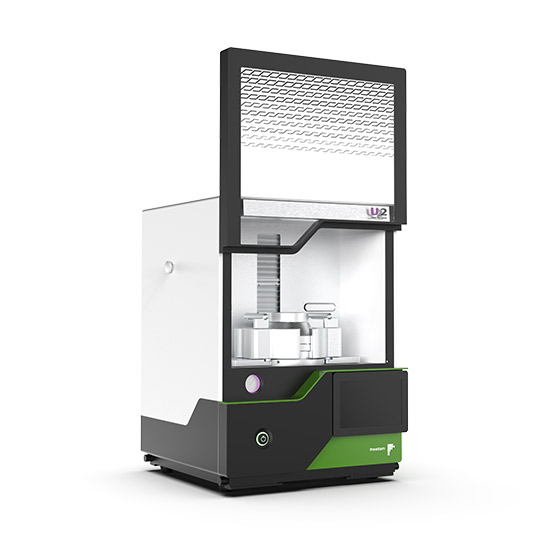

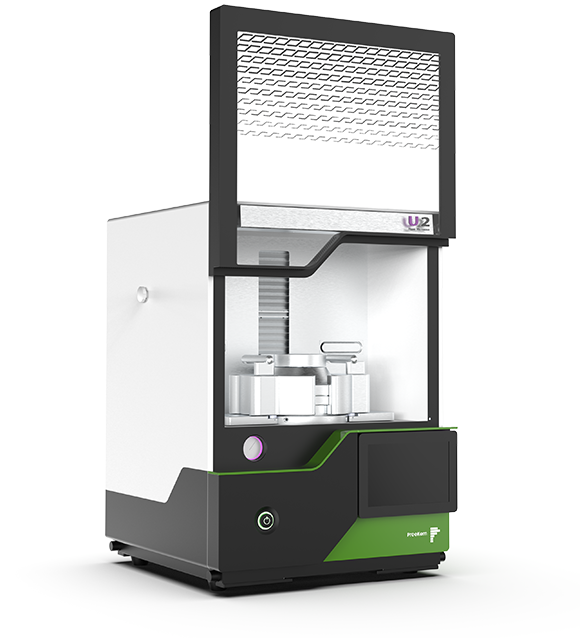

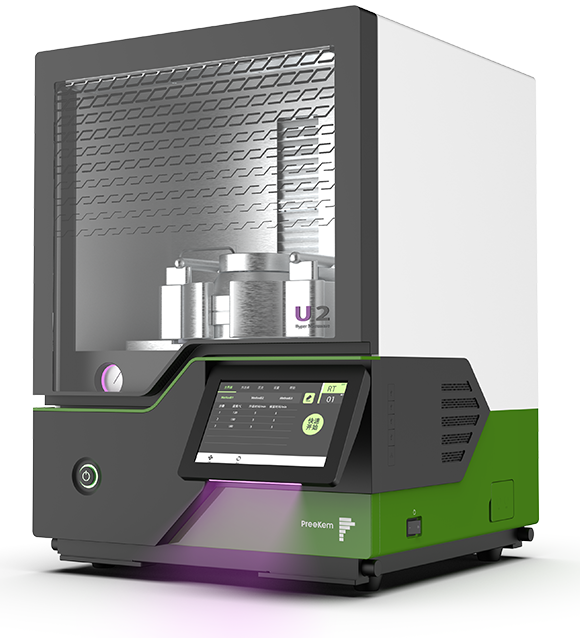

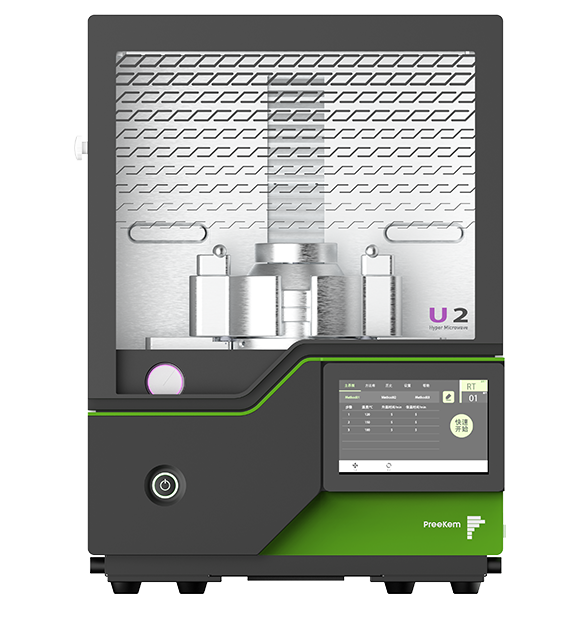

U2 Pre-pressurized Ultra Microwave Reaction System
A microwave reaction technology reimagined and revitalized, U2 brings about an unrivaled digestion performance and solution to sample preparation where a selected list of challenging applications will no longer be limited to the temperature and pressure threshold of a conventional TFM vessel. The state-of-the-art pressurization technology of the reaction chamber allows the digestion temperature to be safely run at up to 300°C and a pressurized environment as high as 200 bar, effectively enabling the most refractory sample types to be digested in a swift and complete manner.
-
Double efficiency
-
Ultra simple loading experience
-
Multiple safety management
-
Get a quote online
Product features
-
01Ultra-high sample throughput
• Wide sample rack selection accommodates up to 82 digestion tubes
• Drastically improved total sample digestion capacity up to 50 g per batch -
02Operational simplicity and convenience
• Hassel-free digestion of various sample types by one method
• Total regulatory compliance with dual heating mode -
03Significantly reduced consumable costs
• Up to 50% savings in acid consumption per sample
• Compatible with low-cost disposable glass test tubes -
04Diverse rack choices and wide application range
• Vessels in different materials available
• Different kinds of samples could be digested completely
Specifications
| Name | Specifications |
|---|---|
| Power | 1500W |
| Cavity volume | 2.5L |
| Max. operating temperature | 300℃ |
| Max. operating pressure | 200bar |
| Sample Rack cpositions | 10, 20, 30, 50, 82 positions or customized |
| Recommended insert gas | Nitrogen, Argon |
| Vessel materials | glass, quartz, PTFE |
| Cooling system | circulating cooling water |
